This is the ultimate gearbox testing on the quality and sustainability for the specified application.
FULL LOAD TESTING
Ingear will carry out full load testing at a customer’s simple request, but at an extra cost.Our full load testing will be able to identify any bearing, gear or shaft defects as well as any misalignment that could result from the load, speed or temperature conditions. Gearbox testing can be carried out at our Gearbox manufacturing factory, or at a third party of the customer’s choosing. Such testing may be witnessed by the customer and video recorded.

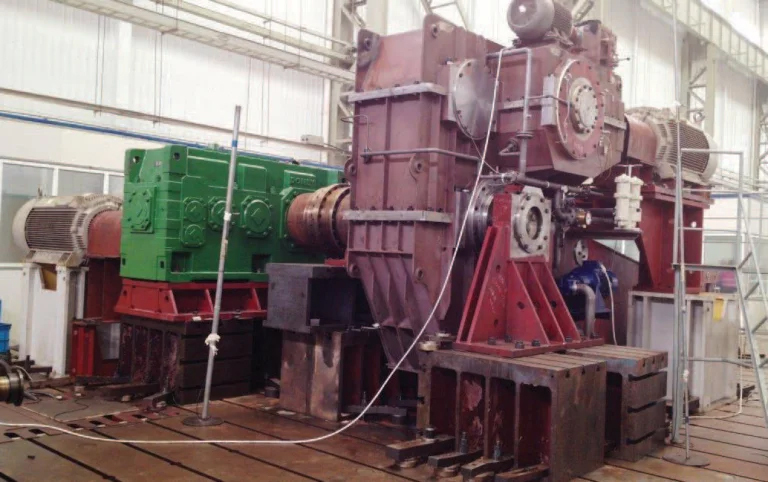

Bucket Wheel Gearbox
This bucket wheel Gearbox is a 24 ton Gearbox used to replace a Thyssenkrupp unit at Port Hedland for Fortescue Metal Group (FMG). This unit had the exact same footprint as their previous Gearbox. The full load test was witnessed by FMG. A second full load test was then carried out in Australia, witnessed by FMG.

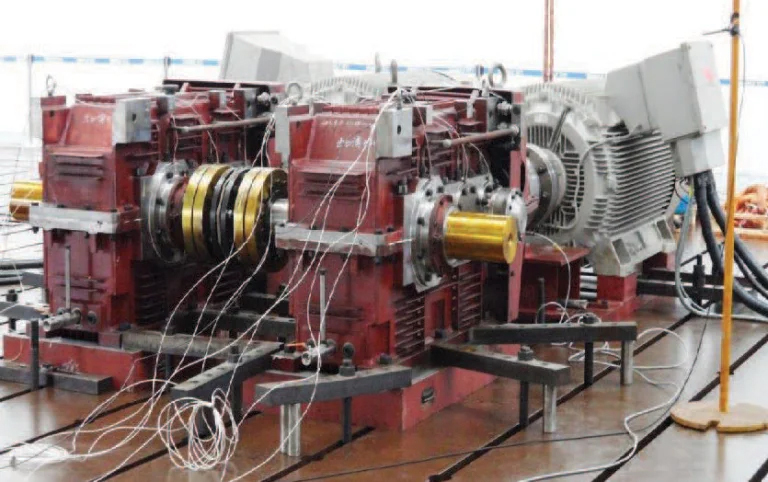

The two Gearboxes here are two of ten we built and conducted full load testing on. These units are able to double output shafts. The Gearboxes can also be turned upside down to utilise a left hand or right hand configuration.
QUALITY CONTROL DOCUMENTATION
Every gearbox we supply has been manufactured in accordance with our high international quality standards.
Formal verification is available in writing of the following:
